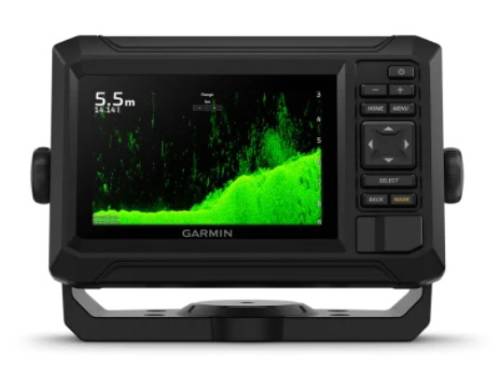

General:
Dimension: 9.1" x 5.6 x 2.6" (23.2 x 14.3 x 6.7 cm)
Weight: 1.5 lbs (0.7 kg)
Water rating: IPX7
Display Type: WVGA, TN
Display Size: 6.1" x 3.4" (15.5 x 8.7 cm)
Display Resolution: 800 x 480 pixels
Mounting Options: Bail or flush
Input: Keyed

Maps & Memory:
Accepts Data Cards 1 microSD™ card; 32 GB maximum size
Waypoints: 5000
Track points: 50000
Tracks: 50 saved tracks
Navigation Routes: 100

Sensors:
GPS: Yes
Galileo: Yes
Built-in receiever: Yes
Reciever: 5 Hz
Support WAAS: Yes

Built-in maps:
Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)
Garmin Navionics+ Inland & Coastal: Yes (see Additional)
Garmin Navionics+ (Coastal): Yes (see Additional)
Garmin Navionics+ (Inland): Yes (see Additional)
BlueChart (coastal): Yes (see Additional)
Tide tables: Yes (see Additional)

Optional map support:
BlueChart g3: Yes
BlueChart g3 Vision: Yes
LakeVü g3: Yes
LakeVü g3 Ultra: Yes
Garmin Navionics+: Yes
Garmin Navionics Vision+: Yes
TOPO 100K: Yes
Standard Mapping: Yes
Garmin Quickdraw Contours: Yes

Chartplotter Features:
ActiveCaptain Mobile Planning Compatible: Yes

Electrical features:
Power Input: 9 to 18 Vdc
Typical current draw at 12 Vdc: 1 A
Maximum current draw at 12 Vdc: 1.5 A
Maximum power usage at 10 Vdc: 18W

Sonar Features:
Displays sonar: Yes
Power output: 500W
Traditional sonar (dual frequency/beam): Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü: Built-in 260/455/800/1000/1200 kHz

Connections:
4-pin transducer ports: 1
Garmin Wi-Fi network (local connection): Yes

Additional
Garmin Navionics+ (coastal): 74cv U.S., 75cv U.K./Ireland
Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv
