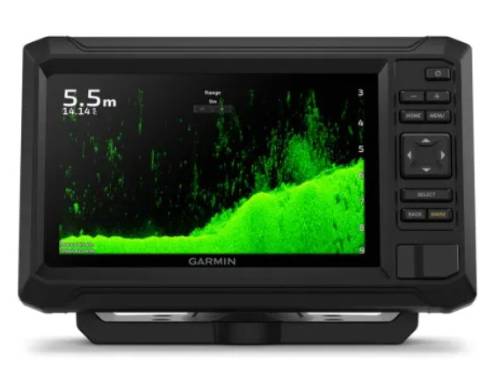

125sv with GT56UHD-TM Transducer; Includes Garmin Navionics+™ Australia & New Zealand Mapping

General
Dimension: 34.1 x 22.9 x 9.8 cm (13.4" x 9" x 3.9")
Weight: 2.5 kg (5.5 lbs)
Water rating: IPX7
Touchscreen: Yes
Display Type: WXGA, IPS
Display Size: 26.1 x 16.3 cm; 30.7 cm diagonal (10.3" x 6.4"; 12.1" diagonal)
Display Resolution: 1280 x 800 pixels
Mounting Options: Bail or flush
Input: Touchscreen with Keyed Assist

Maps & Memory:
Accepts Data Cards: 2 microSD Cards
Waypoints: 5000
Track points: 50,000
Tracks: 50 saved tracks
Navigation Routes: 100

Sensors:
GPS: Yes
GLONASS: Yes
Galileo: Yes
BeiDou: Yes
Has built-in receiver: Yes
Receiver: 10 Hz
NMEA 2000 Compatible: Yes
Supports WAAS: Yes
Supports multi-band, multi-constellation GPS: Yes

Built-in maps:
Built-in Auto Guidance+: Yes
Garmin Navionics+ Inland & Coastal: Yes (see Additional)
Tide tables: Yes (see Additional)

Optional map support:
BlueChart g3: Yes
BlueChart g3 Vision: Yes
Garmin Navionics+: Yes
Garmin Navionics Vision+: Yes
TOPO 100K: Yes
Standard Mapping: Yes
Garmin Quickdraw Contours: Yes

Chartplotter Features:
AIS: Yes
DSC: Yes
Supports Fusion-Link compatible radios: Yes
ActiveCaptain Mobile Planning Compatible: Yes
Sailing Features: Yes

Electrical features:
Power Input: 9 to 18 Vdc
Typical current draw at 12 Vdc: 2.5 A
Maximum current draw at 12 Vdc: 5 A
Maximum power usage at 10 Vdc: 36 W

Sonar Features:
Displays sonar: Yes
Power output: 600 W
Traditional sonar: (dual frequency/beam) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü: Built-in 260/455/800/1000/1200 kHz
SideVü: Built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar: Yes
LiveScope: Yes

Connections:
NMEA 2000® ports: 1
Garmin Marine Network Ports: 2 (large connector)
12-pin transducer ports: 12-pin scanning sonar
ANT+ (Connectivity) : Yes
Garmin Wi-Fi network (local connection): Yes
